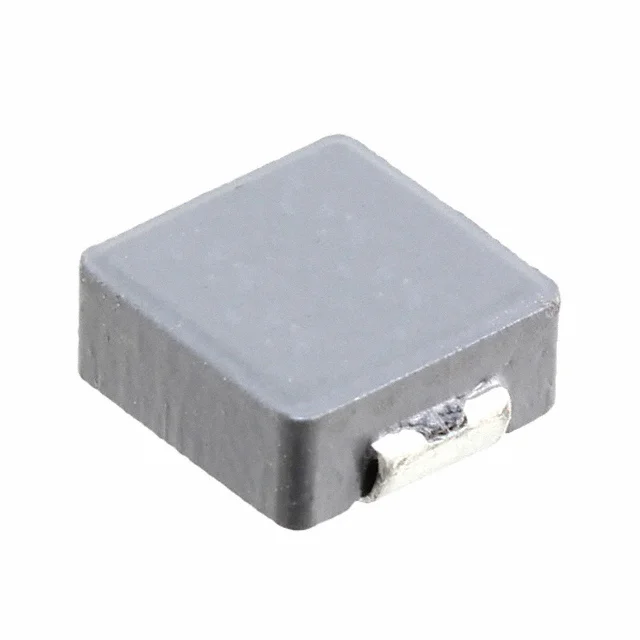

FIXED IND 470NH 17.5A 4.3 MOHM
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 17.5 A |
| DC Resistance (DCR) | 4.3mOhm Max |
| saturationCurrent | 27A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470NH 17.5A 4.3 MOHM |
| Series | SRP7028C |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | 10 @ 100kHz |
| selfResonantFreq | 62MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
