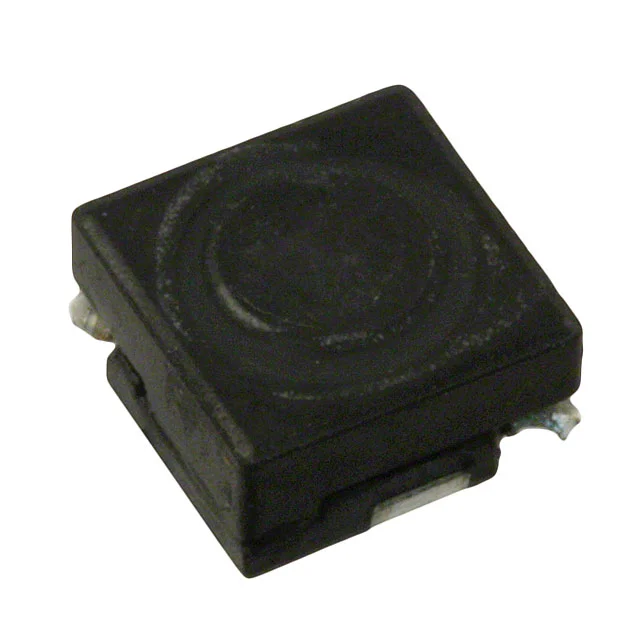

FIXED IND 15UH 900MA 180 MOHM
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 180mOhm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 900MA 180 MOHM |
| Series | SRR0603 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 16 @ 2.52MHz |
| selfResonantFreq | 25MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.134" (3.40mm) |
| features | - |
