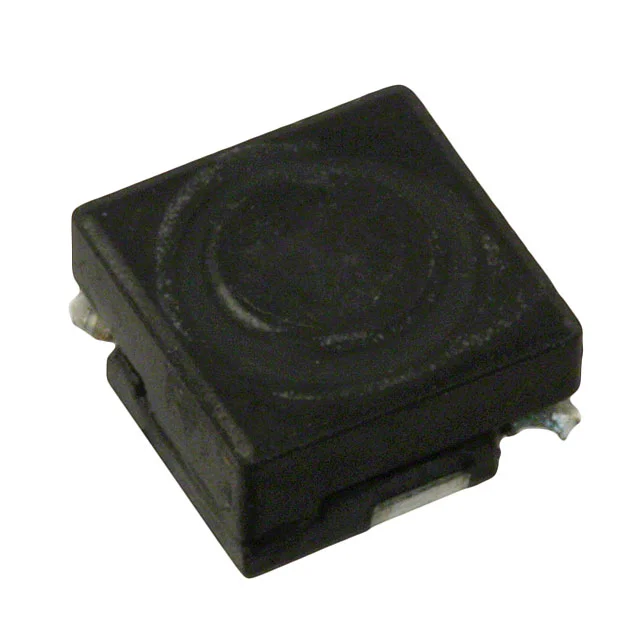

Description
FIXED IND 27UH SURFACE MOUNT
Specifications
Inductance
27 µH
Dimensions
0.256" L x 0.256" W (6.50mm x 6.50mm)
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0603-270KL.
Inductance
27 µH
SRR0603-270KL has an inductance value of 27 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard, Corner Terminals
SRR0603-270KL uses a package or case of Nonstandard, Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0603-270KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 27 µH |
| Tolerance | ±10% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH SURFACE MOUNT |
| Series | SRR0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.130" (3.30mm) |
