Description

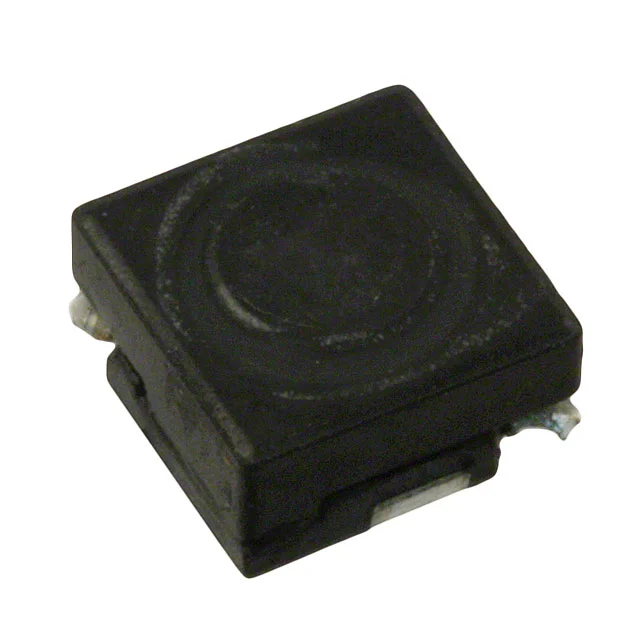

FIXED IND 47UH 500MA 550 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0603-470YL.
SRR0603-470YL has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0603-470YL is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0603-470YL lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0603-470YL uses a package or case of Nonstandard, Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0603-470YL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±15% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 550mOhm Max |
| Saturation Current | 730mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 500MA 550 MOHM |
| Series | SRR0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 13 @ 2.52MHz |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.130" (3.30mm) |
