Description

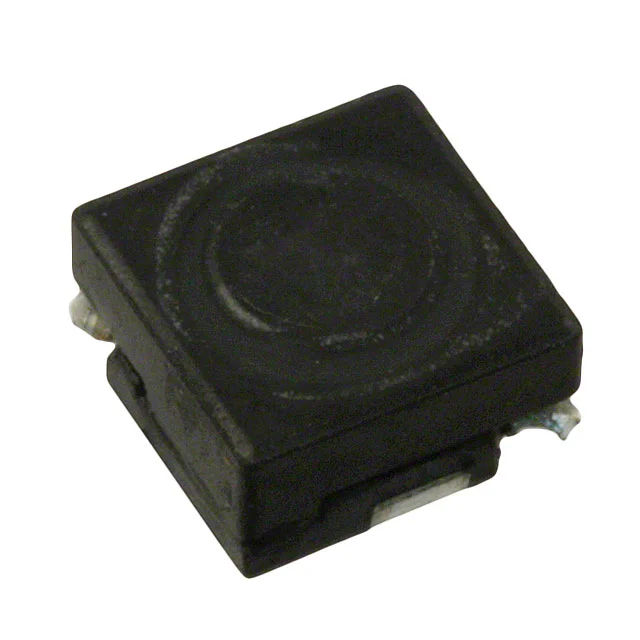

FIXED IND 470UH 150MA 6.7 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0603-471KL.
SRR0603-471KL has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0603-471KL is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0603-471KL lists a DC resistance of 6.7Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0603-471KL uses a package or case of Nonstandard, Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0603-471KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 6.7Ohm Max |
| Saturation Current | 190mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470UH 150MA 6.7 OHM |
| Series | SRR0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 17 @ 796kHz |
| Self Resonant Frequency | 4MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.130" (3.30mm) |
