Description

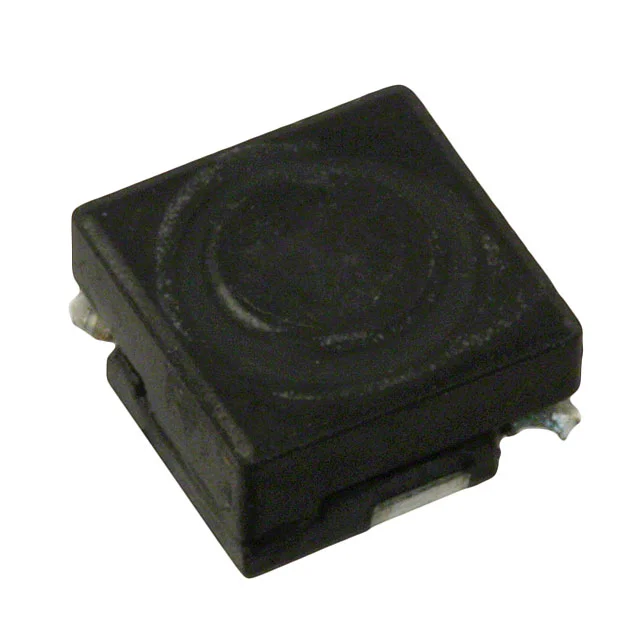

FIXED IND 680UH 120MA 10.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0603-681KL.
SRR0603-681KL has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0603-681KL is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0603-681KL lists a DC resistance of 10.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0603-681KL uses a package or case of Nonstandard, Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0603-681KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 10.5Ohm Max |
| Saturation Current | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 120MA 10.5 OHM |
| Series | SRR0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 13 @ 796kHz |
| Self Resonant Frequency | 3.5MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.130" (3.30mm) |
