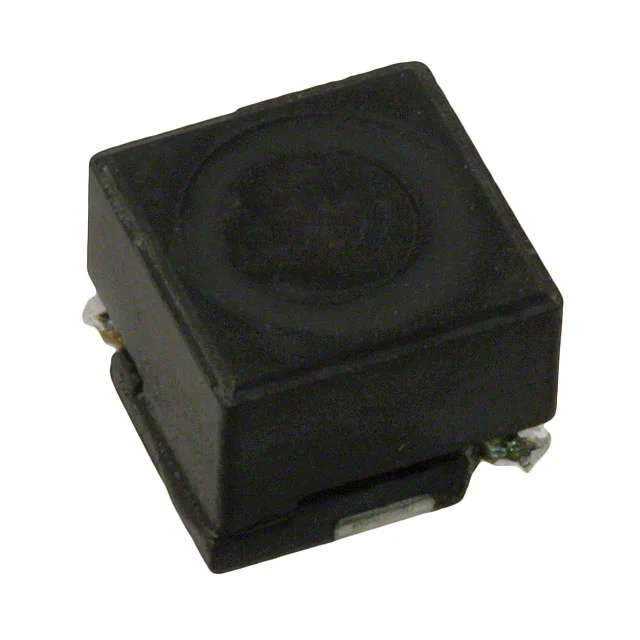

Description
FIXED IND 33UH SURFACE MOUNT
Specifications
Inductance
33 µH
Dimensions
0.256" L x 0.256" W (6.50mm x 6.50mm)
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0604-330YL.
Inductance
33 µH
SRR0604-330YL has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard, Corner Terminals
SRR0604-330YL uses a package or case of Nonstandard, Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0604-330YL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH SURFACE MOUNT |
| Series | SRR0604 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
