Description

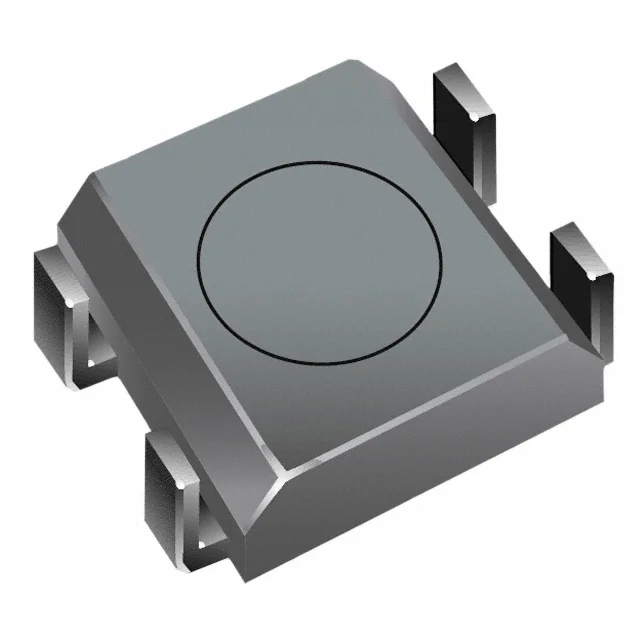

FIXED IND 100UH 230MA 2.3 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0618-101ML.
SRR0618-101ML has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0618-101ML is rated for 230 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0618-101ML lists a DC resistance of 2.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0618-101ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0618-101ML to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 230 mA |
| DC Resistance (DCR) | 2.3Ohm Max |
| Saturation Current | 270mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 230MA 2.3 OHM |
| Series | SRR0618 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 30 @ 100kHz |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.063" (1.60mm) |
