Description

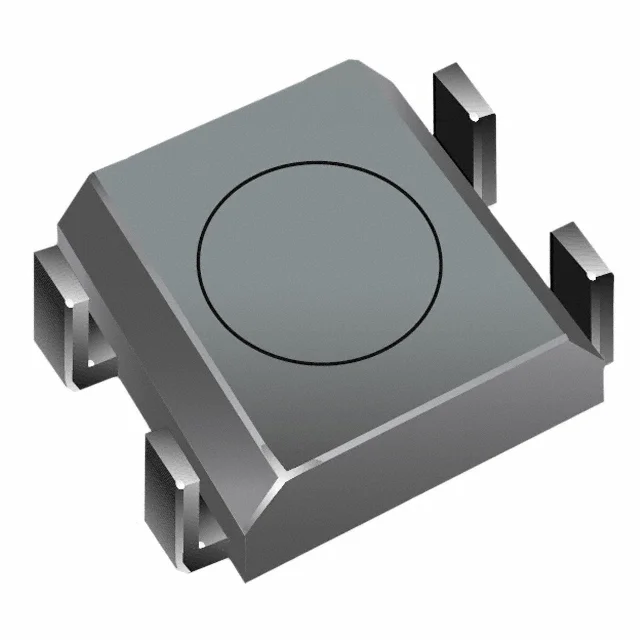

FIXED IND 68UH 300MA 1.5 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0618-680ML.
SRR0618-680ML has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0618-680ML is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0618-680ML lists a DC resistance of 1.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0618-680ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0618-680ML to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 1.5Ohm Max |
| Saturation Current | 370mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 300MA 1.5 OHM SMD |
| Series | SRR0618 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 30 @ 100kHz |
| Self Resonant Frequency | 15MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.063" (1.60mm) |
