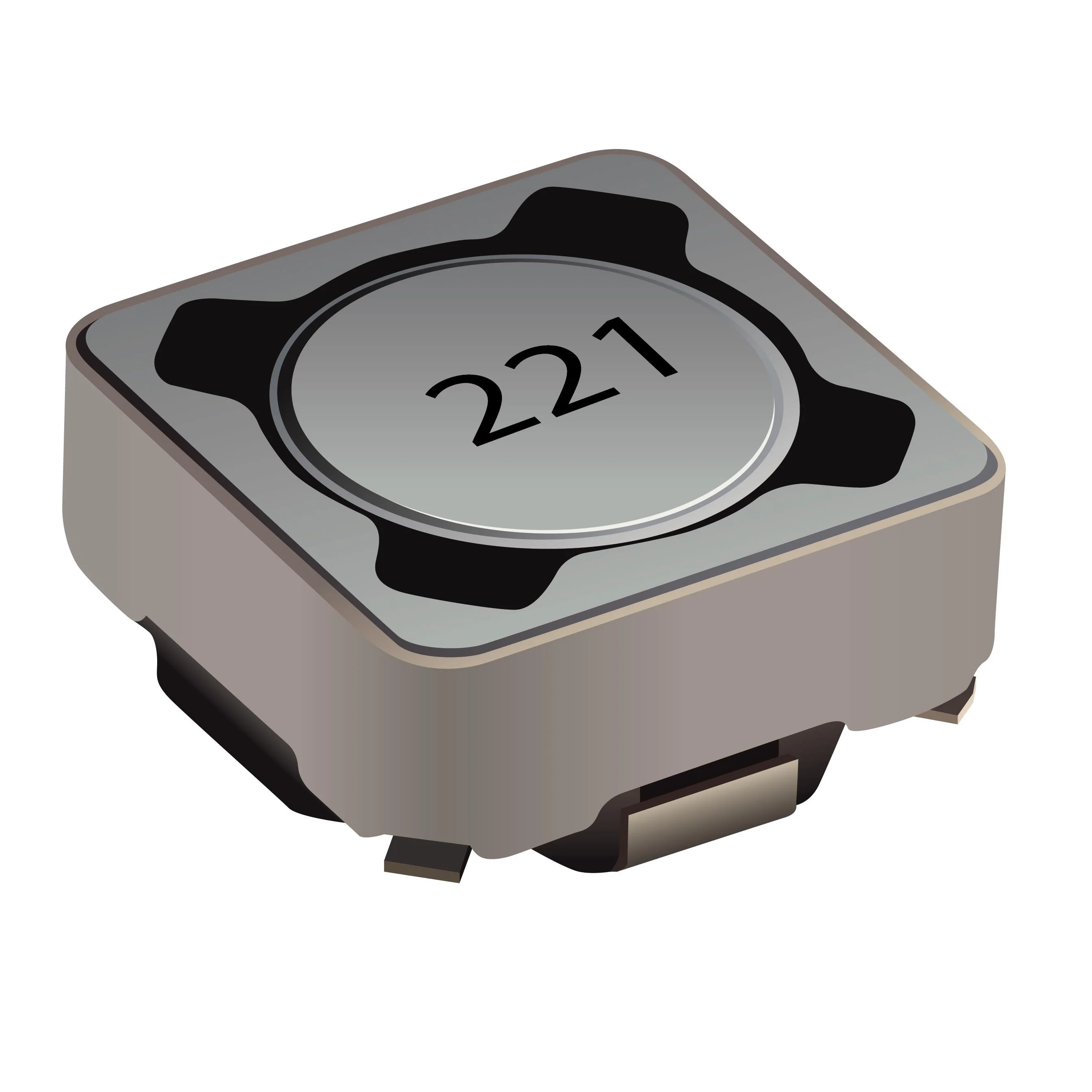

FIXED IND 18UH 1.4A 125 MOHM SMD
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 125mOhm Max |
| saturationCurrent | 1.4A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 1.4A 125 MOHM SMD |
| Series | SRR0735HA |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.146" (3.70mm) |
| features | - |
