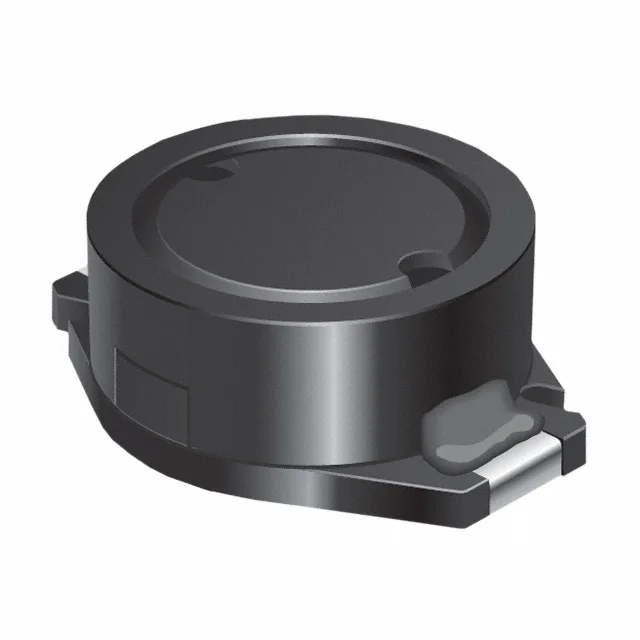

FIXED IND 10UH 1.2A 120 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 120mOhm Max |
| saturationCurrent | 2.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 1.2A 120 MOHM SMD |
| Series | SRR0804 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 38 @ 2.52MHz |
| selfResonantFreq | 32MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.150" (3.80mm) |
| features | - |
