Description

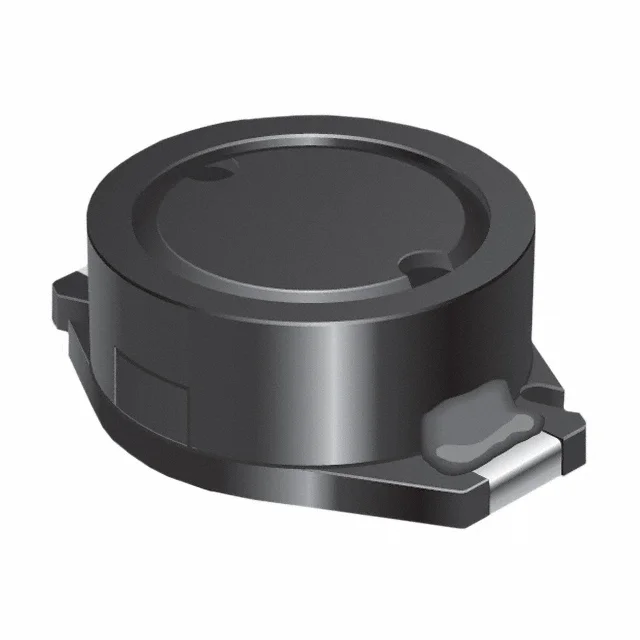

FIXED IND 100UH 370MA 950 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0804-101K.
SRR0804-101K has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0804-101K is rated for 370 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0804-101K lists a DC resistance of 950mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0804-101K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0804-101K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 370 mA |
| DC Resistance (DCR) | 950mOhm Max |
| Saturation Current | 650mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 370MA 950 MOHM |
| Series | SRR0804 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 50 @ 796kHz |
| Self Resonant Frequency | 9MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.150" (3.80mm) |
