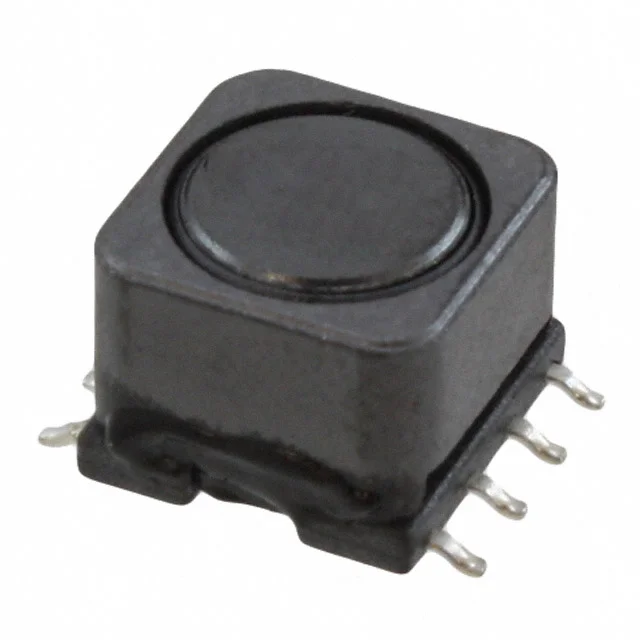

FIXED IND 3.9UH 4.4A 21 MOHM SMD
| Inductance | 3.9 µH |
| Tolerance | ±20% |
| Current Rating | 4.4 A |
| DC Resistance (DCR) | 21mOhm Max |
| saturationCurrent | 6.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Case / Size | 8-SMD, Gull Wing |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9UH 4.4A 21 MOHM SMD |
| Series | SRR0908 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 20 @ 7.96MHz |
| selfResonantFreq | 35MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.307" (7.80mm) |
| features | - |
