Description

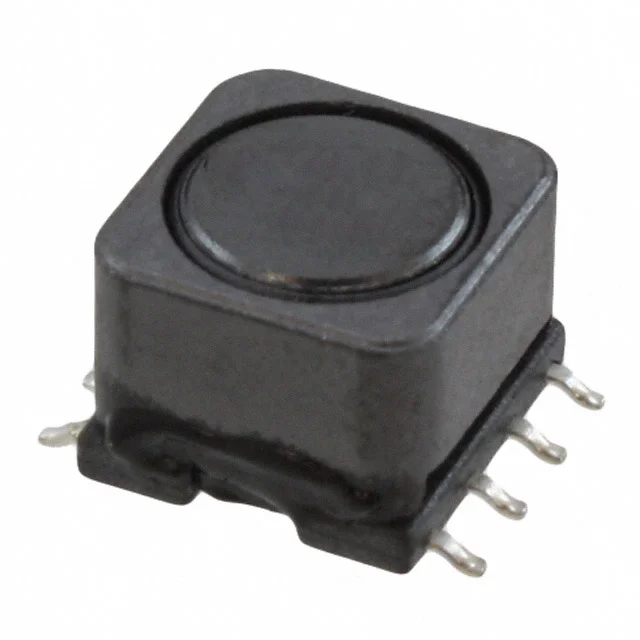

FIXED IND 560UH 380MA 1.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR0908-561YL.
SRR0908-561YL has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR0908-561YL is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR0908-561YL lists a DC resistance of 1.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR0908-561YL uses a package or case of 8-SMD, Gull Wing. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR0908-561YL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±15% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 1.5Ohm Max |
| Saturation Current | 550mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Case / Size | 8-SMD, Gull Wing |
| Package / Case | 8-SMD, Gull Wing |
| Supplier | Bourns Inc. |
| Description | FIXED IND 560UH 380MA 1.5 OHM |
| Series | SRR0908 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 35 @ 796kHz |
| Self Resonant Frequency | 2.2MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
