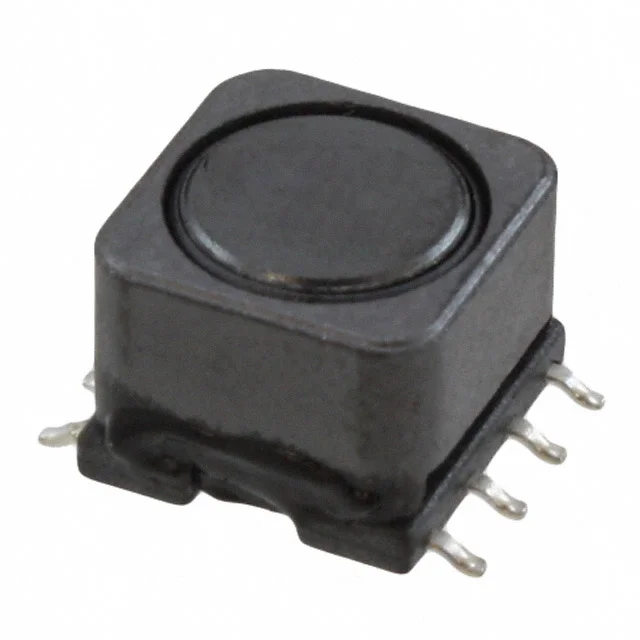

FIXED IND 5.6UH 3.8A 27 MOHM SMD
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating | 3.8 A |
| DC Resistance (DCR) | 27mOhm Max |
| saturationCurrent | 5.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Case / Size | 8-SMD, Gull Wing |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.6UH 3.8A 27 MOHM SMD |
| Series | SRR0908 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 18 @ 7.96MHz |
| selfResonantFreq | 25MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.307" (7.80mm) |
| features | - |
