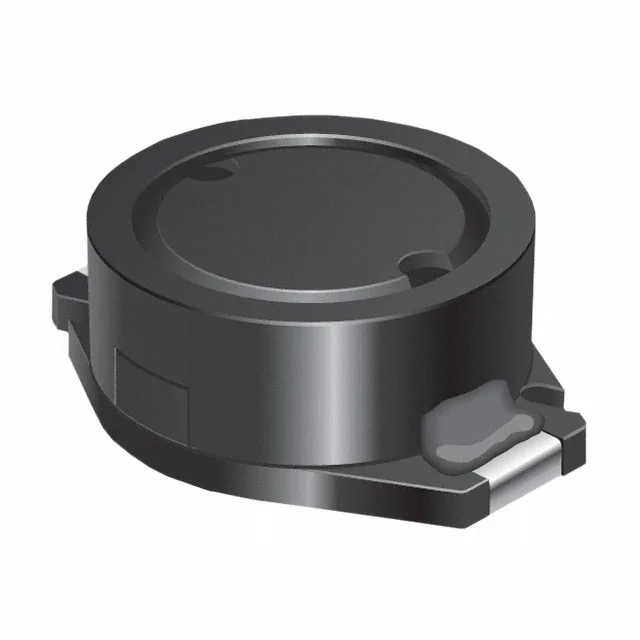

FIXED IND 100UH 400MA 1.4 OHM
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.4Ohm Max |
| saturationCurrent | 950mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 400MA 1.4 OHM |
| Series | SRR1003 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 23 @ 796kHz |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
