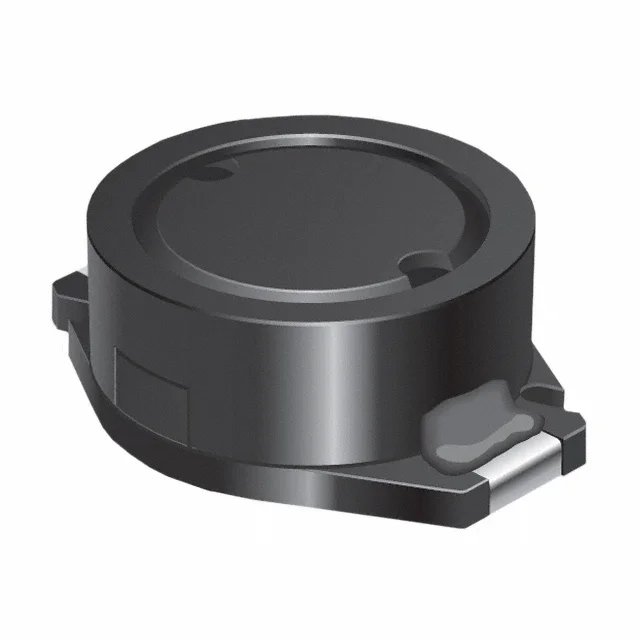

FIXED IND 2.2UH 2.76A 45 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.76 A |
| DC Resistance (DCR) | 45mOhm Max |
| saturationCurrent | 6.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 2.76A 45 MOHM |
| Series | SRR1003 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 11 @ 7.96MHz |
| selfResonantFreq | 90MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
