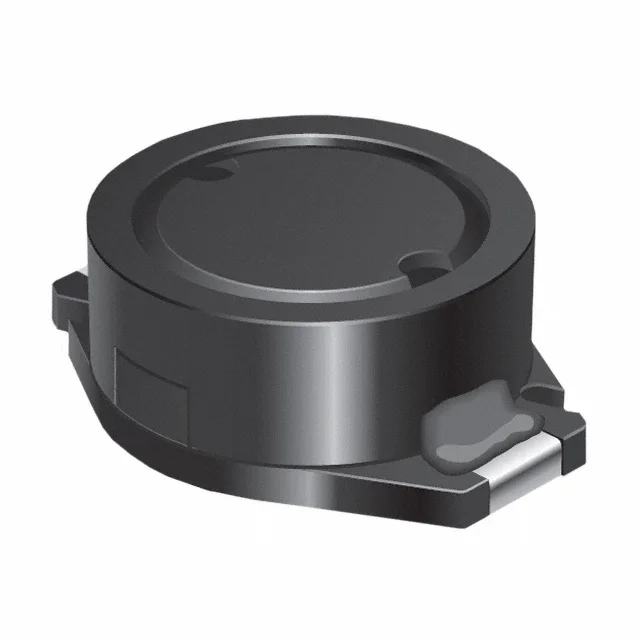

FIXED IND 4.7UH 1.9A 78 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 78mOhm Max |
| saturationCurrent | 4.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 1.9A 78 MOHM SMD |
| Series | SRR1003 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 10 @ 7.96MHz |
| selfResonantFreq | 50MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
