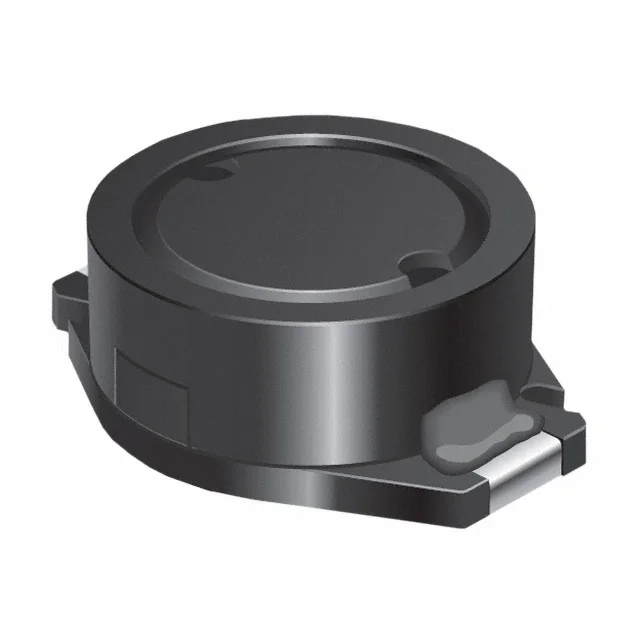

FIXED IND 56UH 520MA 680 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1003-560M.
SRR1003-560M has an inductance value of 56 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1003-560M is rated for 520 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1003-560M lists a DC resistance of 680mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1003-560M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1003-560M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating | 520 mA |
| DC Resistance (DCR) | 680mOhm Max |
| Saturation Current | 1.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.406" W (12.70mm x 10.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 56UH 520MA 680 MOHM |
| Series | SRR1003 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 2.52MHz |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
