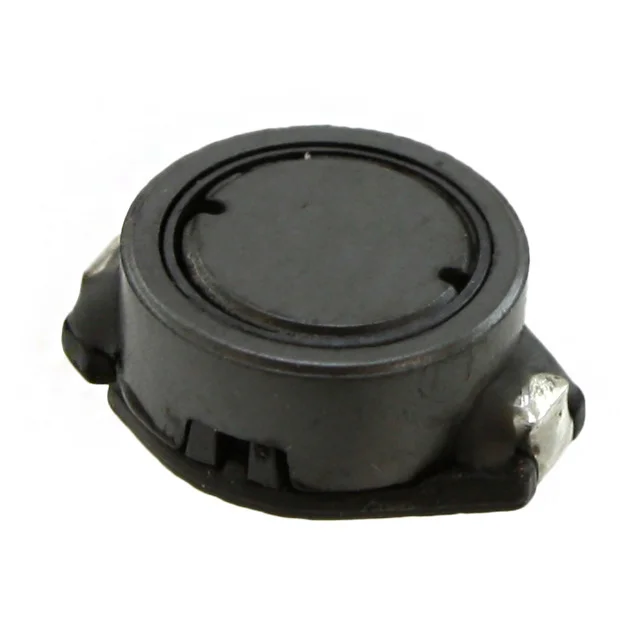

FIXED IND 27UH 1.3A 120 MOHM SMD
| Inductance | 27 µH |
| Tolerance | ±15% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 120mOhm Max |
| saturationCurrent | 1.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 1.3A 120 MOHM SMD |
| Series | SRR1005 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 40 @ 2.52MHz |
| selfResonantFreq | 17MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.205" (5.20mm) |
