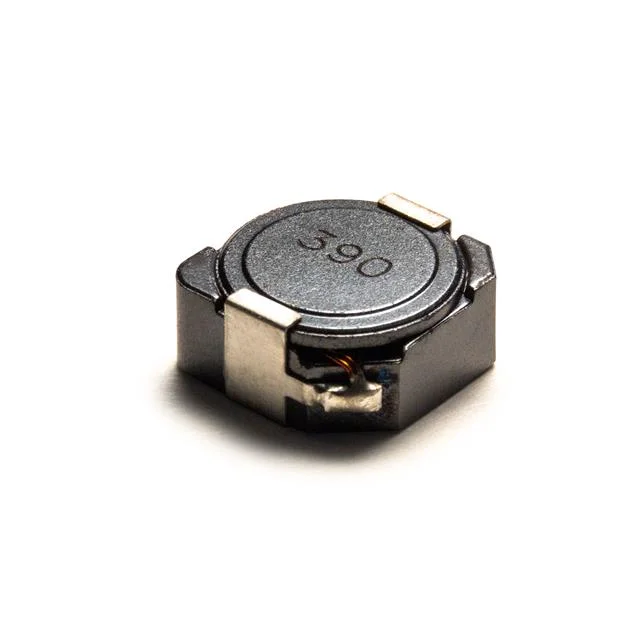

FIXED IND 27UH 2.6A 77 MOHM SMD
| Inductance | 27 µH |
| Tolerance | ±30% |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 77mOhm Max |
| saturationCurrent | 2.7A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 2.6A 77 MOHM SMD |
| Series | SRR1050HA |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 10MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.201" (5.10mm) |
| features | - |
