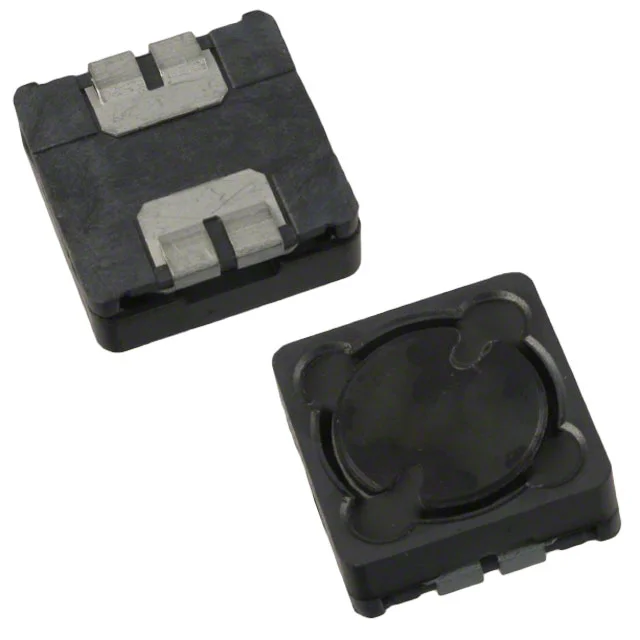

FIXED IND 120UH 900MA 500 MOHM
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 500mOhm Max |
| saturationCurrent | 1.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 120UH 900MA 500 MOHM |
| Series | SRR1205 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 10 @ 796kHz |
| selfResonantFreq | 4.5MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
