Description

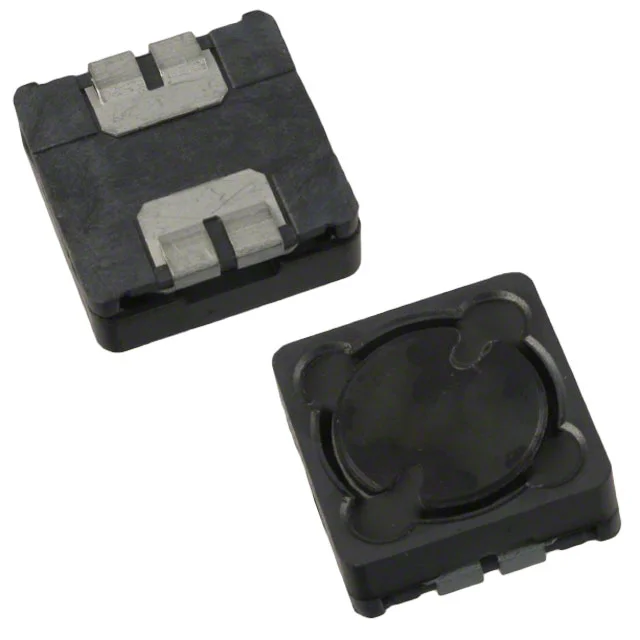

FIXED IND 180UH 700MA 750 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1205-181KL.
SRR1205-181KL has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1205-181KL is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1205-181KL lists a DC resistance of 750mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1205-181KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1205-181KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 750mOhm Max |
| Saturation Current | 1.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 180UH 700MA 750 MOHM |
| Series | SRR1205 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 9 @ 796kHz |
| Self Resonant Frequency | 3.5MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
