Description

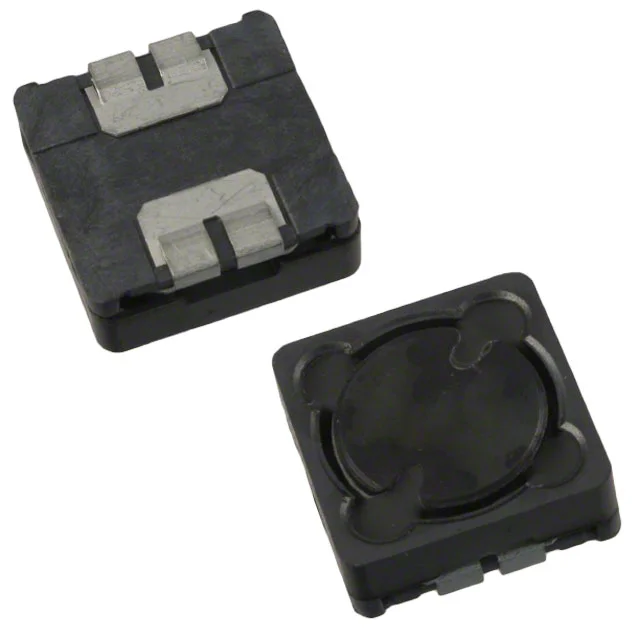

FIXED IND 220UH 650MA 840 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1205-221KL.
SRR1205-221KL has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1205-221KL is rated for 650 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1205-221KL lists a DC resistance of 840mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1205-221KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1205-221KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 840mOhm Max |
| Saturation Current | 1.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 650MA 840 MOHM |
| Series | SRR1205 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 9 @ 796kHz |
| Self Resonant Frequency | 3MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
