Description

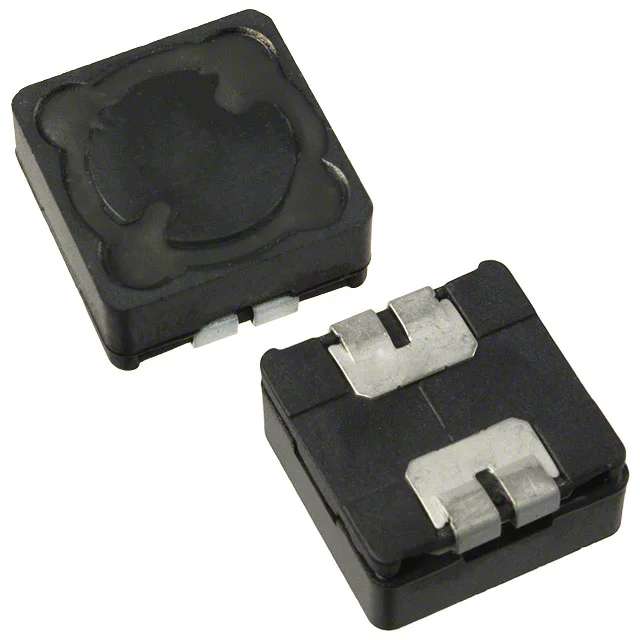

FIXED IND 470UH 500MA 970 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1206-471KL.
SRR1206-471KL has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1206-471KL is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1206-471KL lists a DC resistance of 970mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1206-471KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1206-471KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 970mOhm Max |
| Saturation Current | 830mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470UH 500MA 970 MOHM |
| Series | SRR1206 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 12 @ 796kHz |
| Self Resonant Frequency | 2.5MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.256" (6.50mm) |
