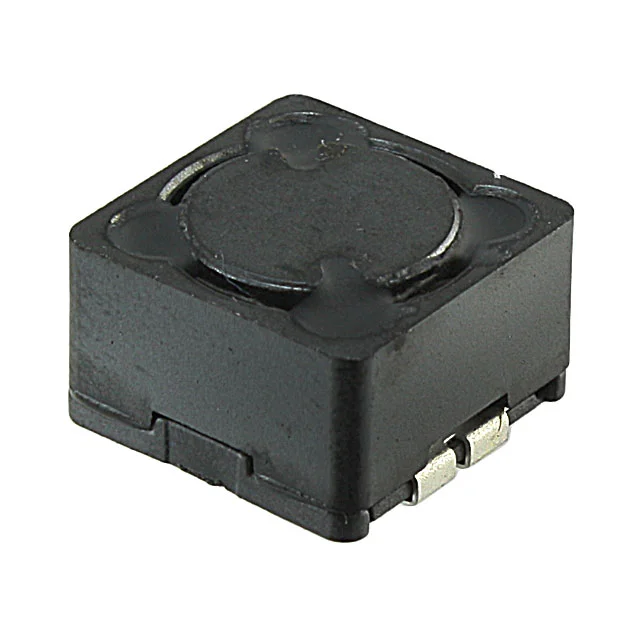

FIXED IND 1MH 500MA 1.65 OHM SMD
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.65Ohm Max |
| saturationCurrent | 670mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 500MA 1.65 OHM SMD |
| Series | SRR1208 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 11 @ 252kHz |
| selfResonantFreq | 1MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.335" (8.50mm) |
| features | - |
