Description

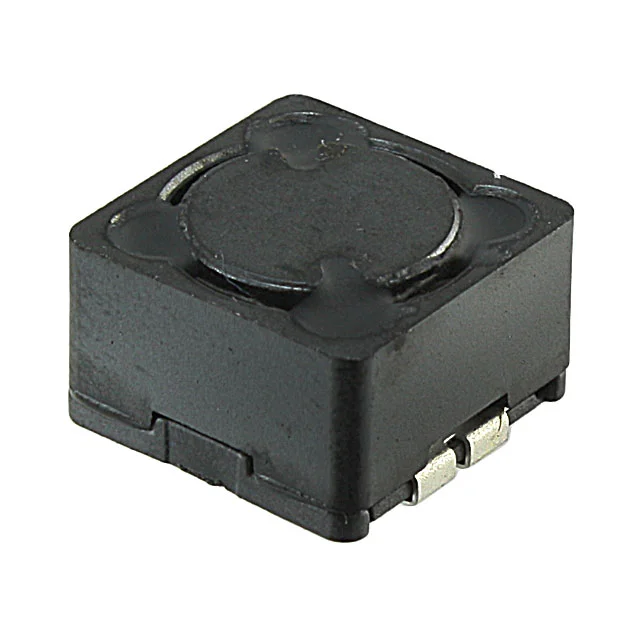

FIXED IND 15UH 4A 36 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1208-150M.
SRR1208-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1208-150M is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1208-150M lists a DC resistance of 36mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1208-150M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1208-150M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 36mOhm Max |
| Saturation Current | 5.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 4A 36 MOHM SMD |
| Series | SRR1208 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 21 @ 2.52MHz |
| Self Resonant Frequency | 11MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.335" (8.50mm) |
