Description

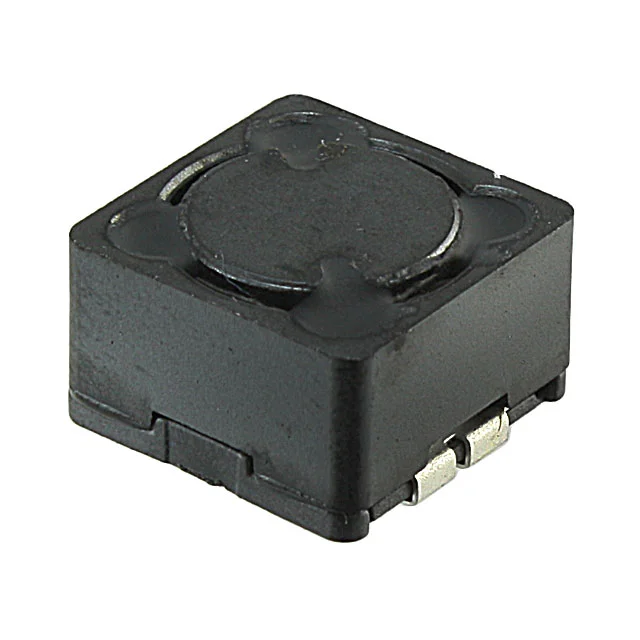

FIXED IND 330UH 850MA 650 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1208-331K.
SRR1208-331K has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1208-331K is rated for 850 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1208-331K lists a DC resistance of 650mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1208-331K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1208-331K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 650mOhm Max |
| Saturation Current | 1.12A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 850MA 650 MOHM |
| Series | SRR1208 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 13 @ 796kHz |
| Self Resonant Frequency | 1.8MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.335" (8.50mm) |
