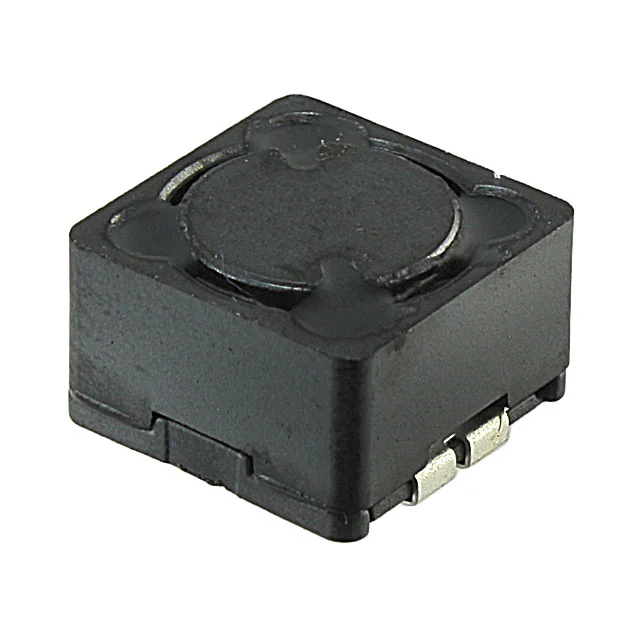

FIXED IND 4.5UH 6.5A 14 MOHM SMD
| Inductance | 4.5 µH |
| Tolerance | ±20% |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 14mOhm Max |
| saturationCurrent | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.5UH 6.5A 14 MOHM SMD |
| Series | SRR1208 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 24 @ 7.96MHz |
| selfResonantFreq | 30MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.335" (8.50mm) |
| features | - |
