Description

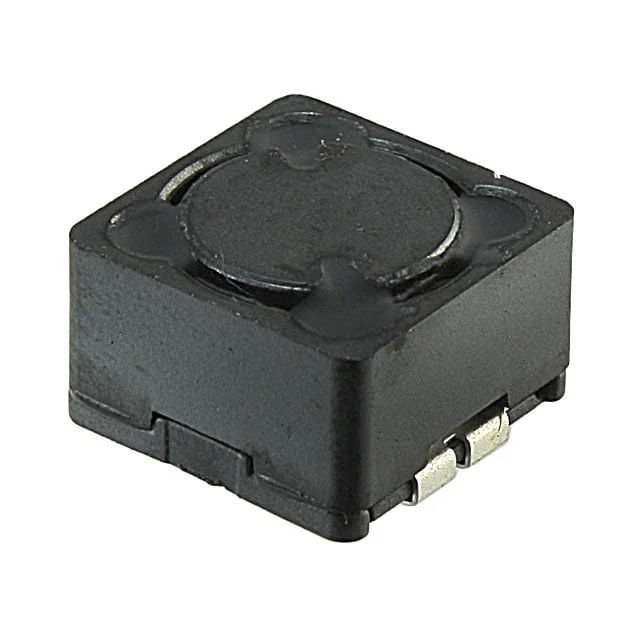

FIXED IND 560UH 650MA 900 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1208-561KL.
SRR1208-561KL has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1208-561KL is rated for 650 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1208-561KL lists a DC resistance of 900mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1208-561KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1208-561KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 900mOhm Max |
| Saturation Current | 900mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 560UH 650MA 900 MOHM |
| Series | SRR1208 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 14 @ 796kHz |
| Self Resonant Frequency | 1.4MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.335" (8.50mm) |
