Description

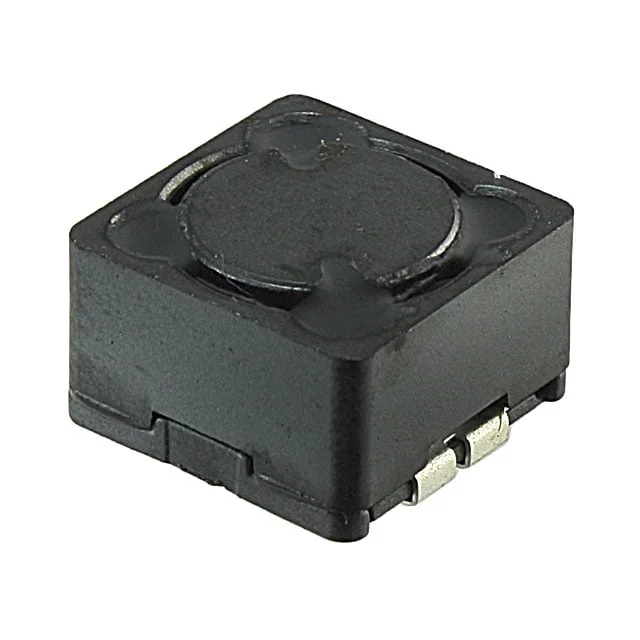

FIXED IND 6.8MH 220MA 15.2 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1208-682KL.
SRR1208-682KL has an inductance value of 6.8 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1208-682KL is rated for 220 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1208-682KL lists a DC resistance of 15.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1208-682KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1208-682KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 6.8 mH |
| Tolerance | ±10% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 15.2Ohm Max |
| Saturation Current | 250mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8MH 220MA 15.2 OHM |
| Series | SRR1208 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 18 @ 252kHz |
| Self Resonant Frequency | 380kHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.335" (8.50mm) |
