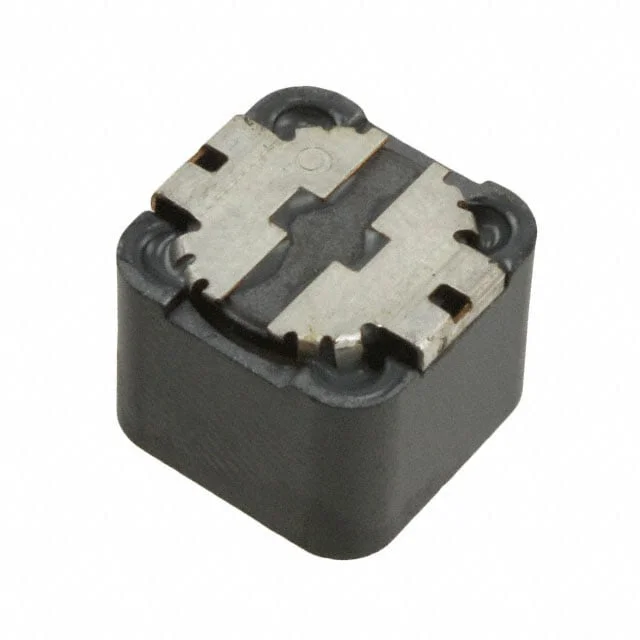

FIXED IND 2.2UH 9.5A 9 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 9.5 A |
| DC Resistance (DCR) | 9mOhm Max |
| saturationCurrent | 12.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 9.5A 9 MOHM SMD |
| Series | SRR1210 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 10 @ 7.96MHz |
| selfResonantFreq | 54MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
