Description

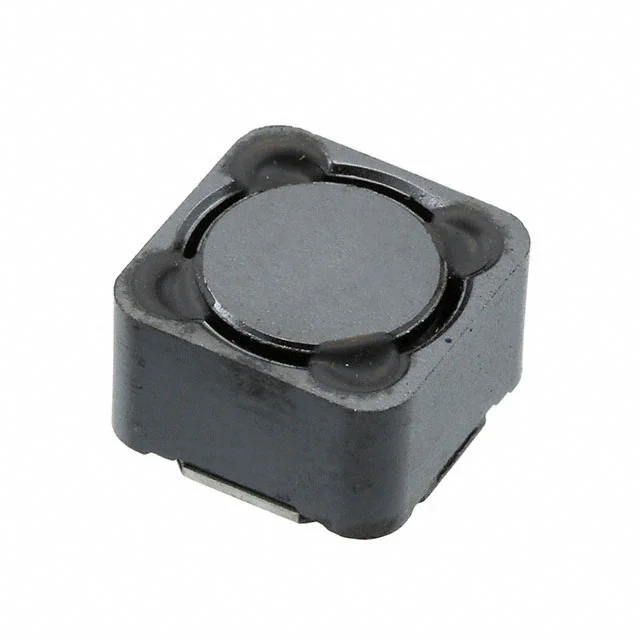

FIXED IND 22UH 4.3A 38.6 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR1280A-220M.
SRR1280A-220M has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR1280A-220M is rated for 4.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR1280A-220M lists a DC resistance of 38.6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR1280A-220M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR1280A-220M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 4.3 A |
| DC Resistance (DCR) | 38.6mOhm Max |
| Saturation Current | 4.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22UH 4.3A 38.6 MOHM |
| Series | SRR1280A |
| Product Status | Active |
| Type / Construction | - |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 2.52MHz |
| Self Resonant Frequency | 11MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1280 |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Features | - |
