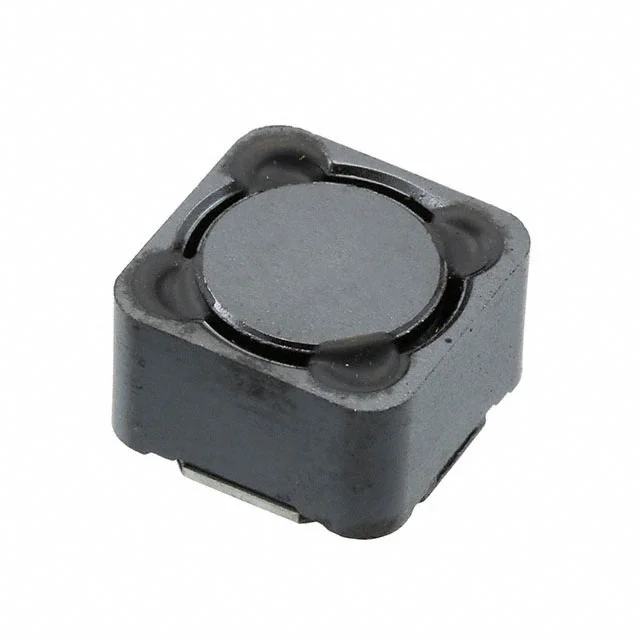

FIXED IND 27UH 3.9A 52 MOHM SMD
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating | 3.9 A |
| DC Resistance (DCR) | 52mOhm Max |
| saturationCurrent | 3.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 3.9A 52 MOHM SMD |
| Series | SRR1280A |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 26 @ 2.52MHz |
| selfResonantFreq | 10MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1280 |
| heightMax | 0.315" (8.00mm) |
| features | - |
