Description

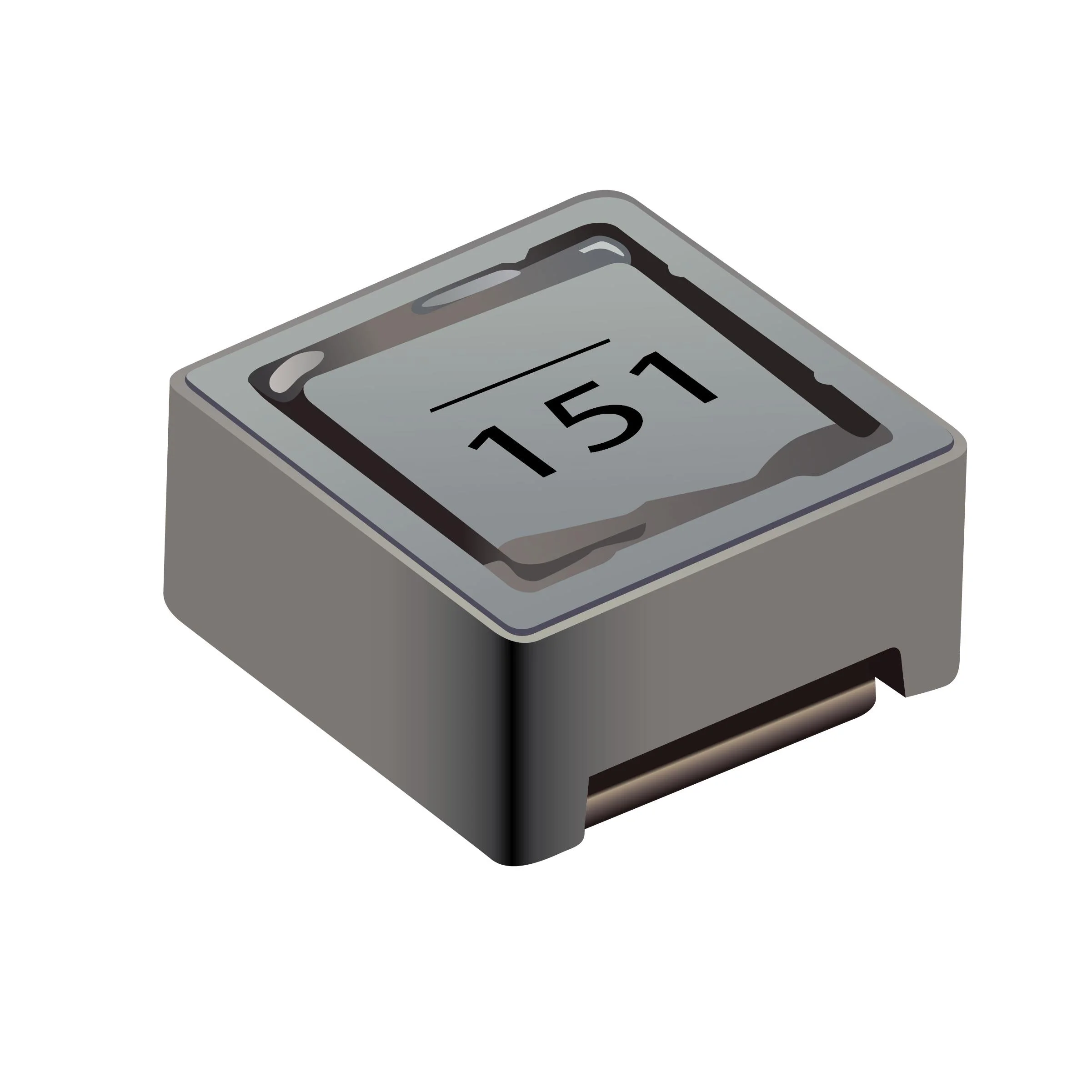

FIXED IND 1MH 160MA 8.7 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR5228A-102M.
SRR5228A-102M has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR5228A-102M is rated for 160 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR5228A-102M lists a DC resistance of 8.7Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR5228A-102M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR5228A-102M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 8.7Ohm Max |
| Saturation Current | 150mA |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 160MA 8.7 OHM SMD |
| Series | SRR5228A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 2.1MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
