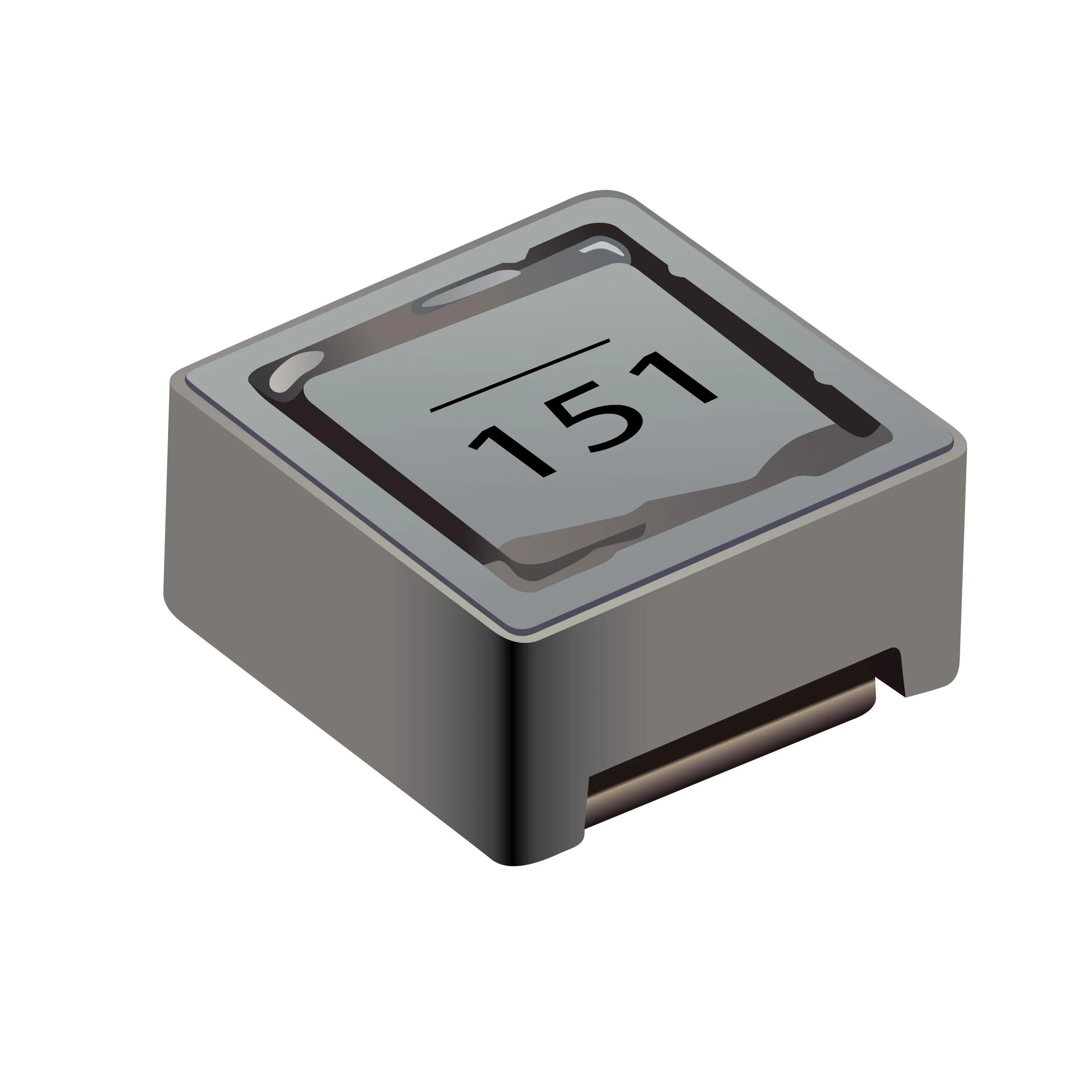

FIXED IND 2.2UH 3.1A 27 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 3.1 A |
| DC Resistance (DCR) | 27mOhm Max |
| saturationCurrent | 3.1A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 3.1A 27 MOHM SMD |
| Series | SRR5228A |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 95MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
