Description

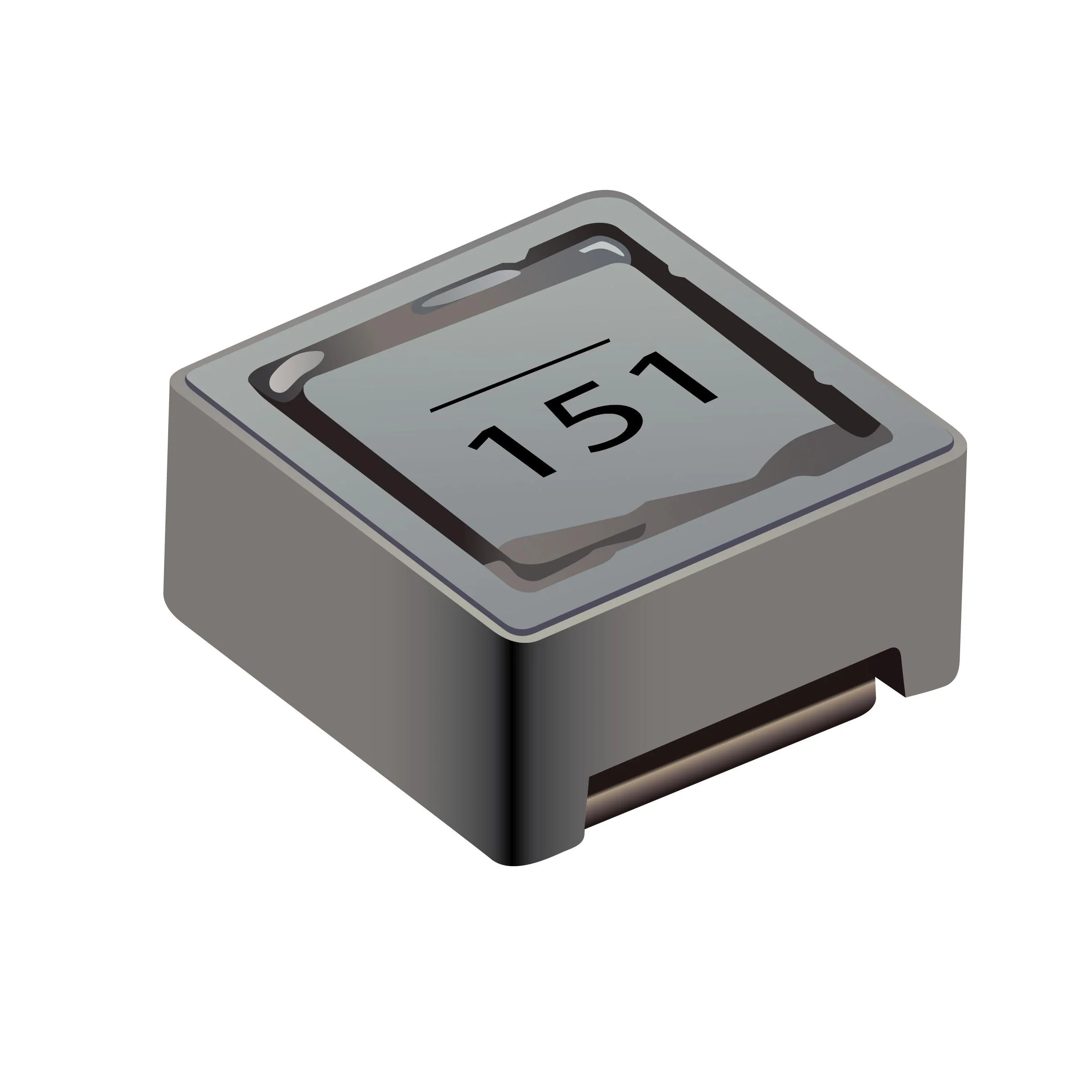

FIXED IND 330UH 270MA 3.2 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR5228A-331M.
SRR5228A-331M has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR5228A-331M is rated for 270 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR5228A-331M lists a DC resistance of 3.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR5228A-331M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR5228A-331M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 270 mA |
| DC Resistance (DCR) | 3.2Ohm Max |
| Saturation Current | 260mA |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 270MA 3.2 OHM |
| Series | SRR5228A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 3.7MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
