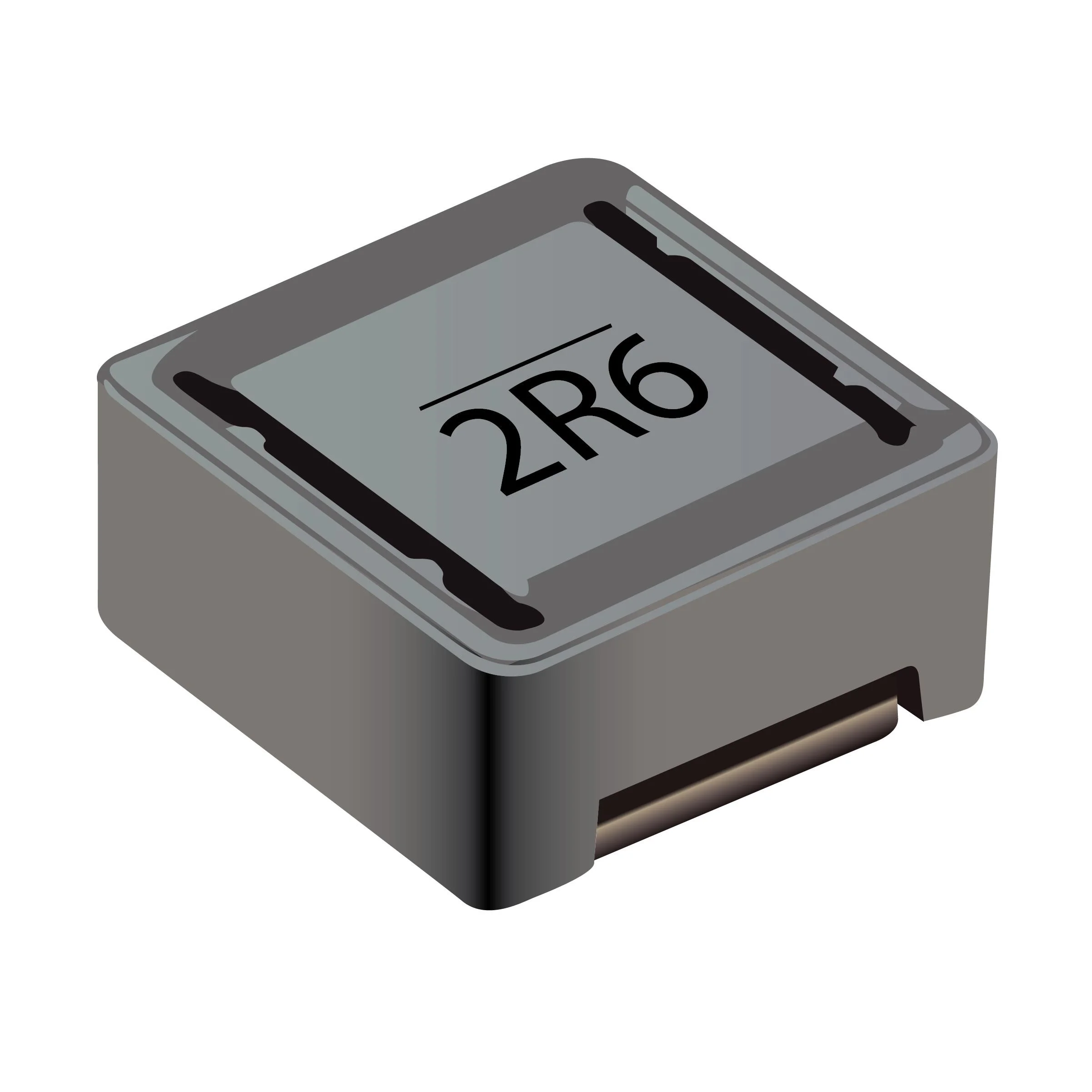

Description
FIXED IND 15UH 1.7A 115 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR5828A-150M.
SRR5828A-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR5828A-150M is rated for 1.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR5828A-150M lists a DC resistance of 115mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR5828A-150M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR5828A-150M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 115mOhm Max |
| Saturation Current | 1.35A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.7A 115 MOHM SMD |
| Series | SRR5828A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 25MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
