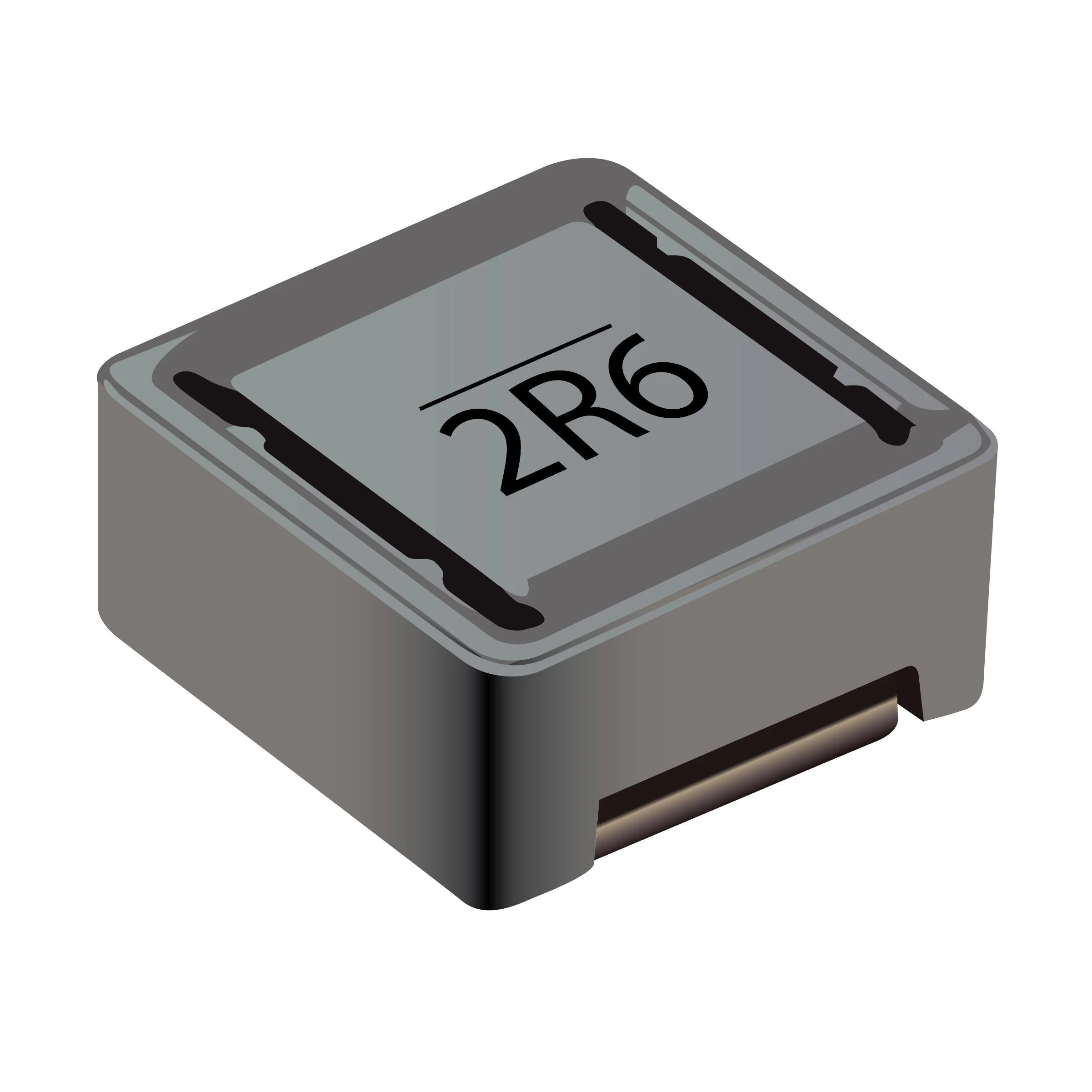

FIXED IND 680UH 230MA 4.8 OHM
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 230 mA |
| DC Resistance (DCR) | 4.8Ohm Max |
| saturationCurrent | 210mA |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 230MA 4.8 OHM |
| Series | SRR5828A |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 3MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
