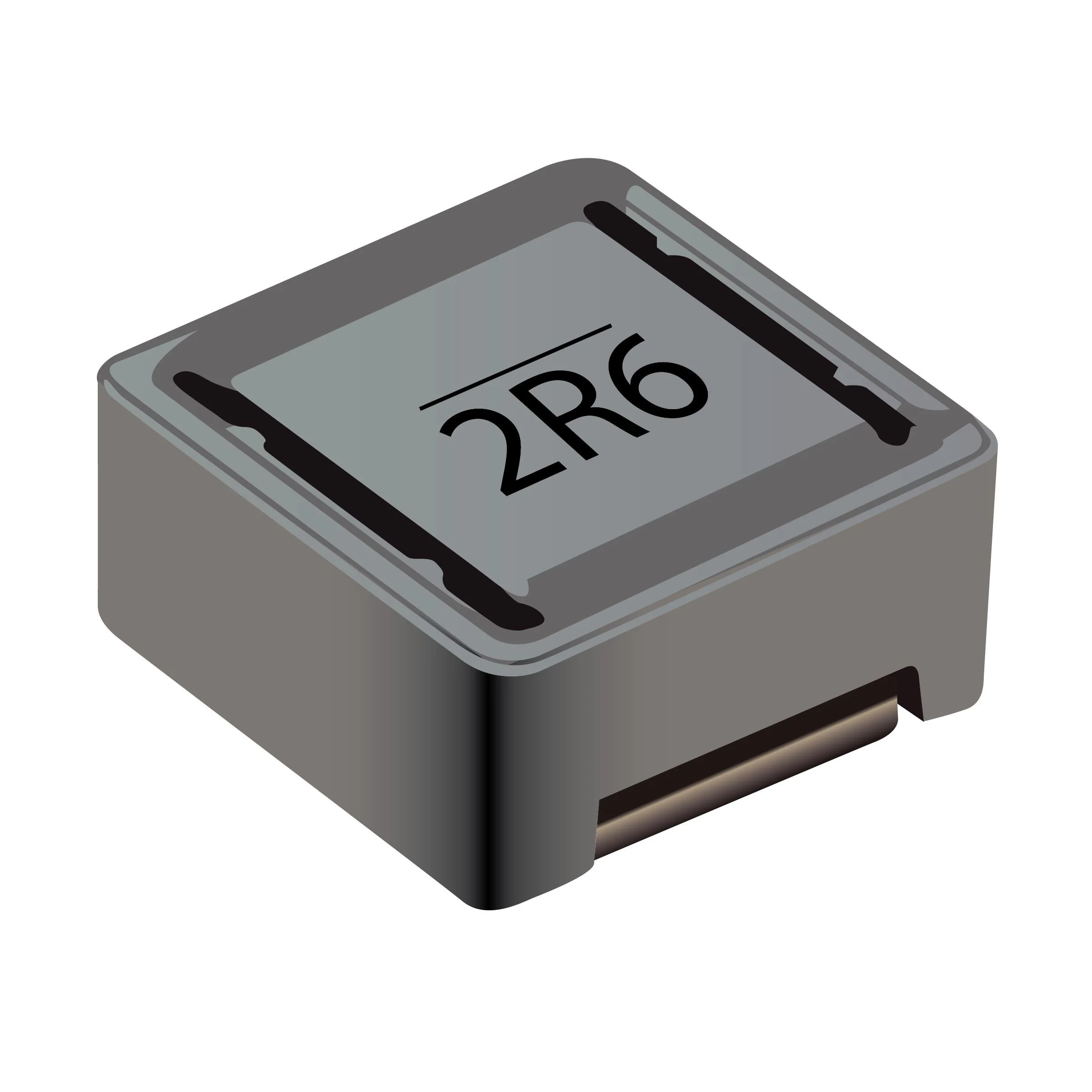

FIXED IND 6.2UH 2.6A 57 MOHM SMD
| Inductance | 6.2 µH |
| Tolerance | ±30% |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 57mOhm Max |
| saturationCurrent | 2.1A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.2UH 2.6A 57 MOHM SMD |
| Series | SRR5828A |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 41MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
