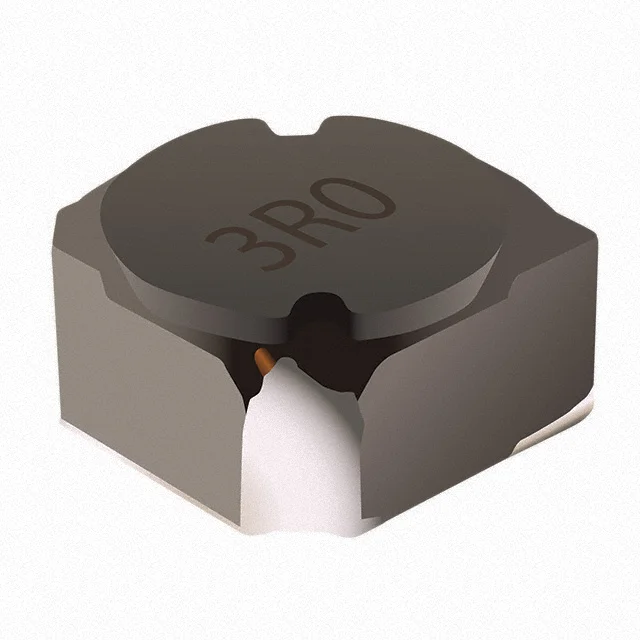

FIXED IND 3UH 3.5A 21 MOHM SMD
| Inductance | 3 µH |
| Tolerance | ±30% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 21mOhm Max |
| saturationCurrent | 3.33A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Case / Size | Nonstandard, Corner Terminals |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3UH 3.5A 21 MOHM SMD |
| Series | SRR6040A |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 10 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
