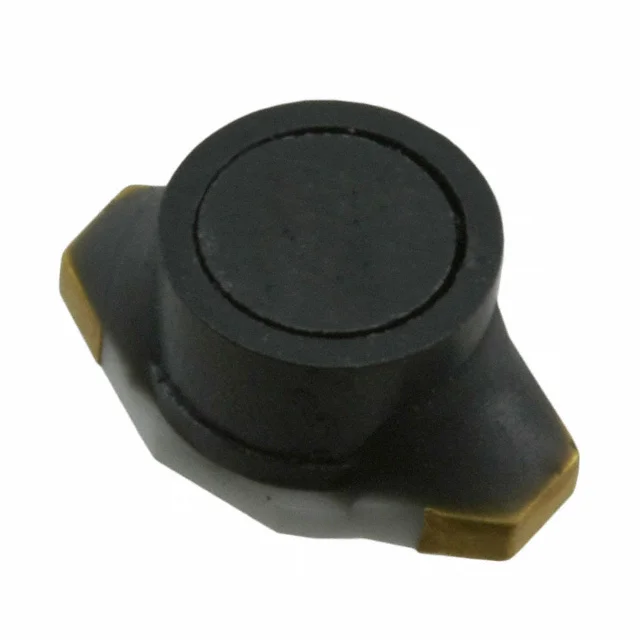

FIXED IND 10MH 20MA 32.8 OHM SMD
| Inductance | 10 mH |
| Tolerance | ±20% |
| Current Rating | 20 mA |
| DC Resistance (DCR) | 32.8Ohm Max |
| saturationCurrent | 17mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10MH 20MA 32.8 OHM SMD |
| Series | SRR6603 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 50 @ 100kHz |
| selfResonantFreq | 800kHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
