Description

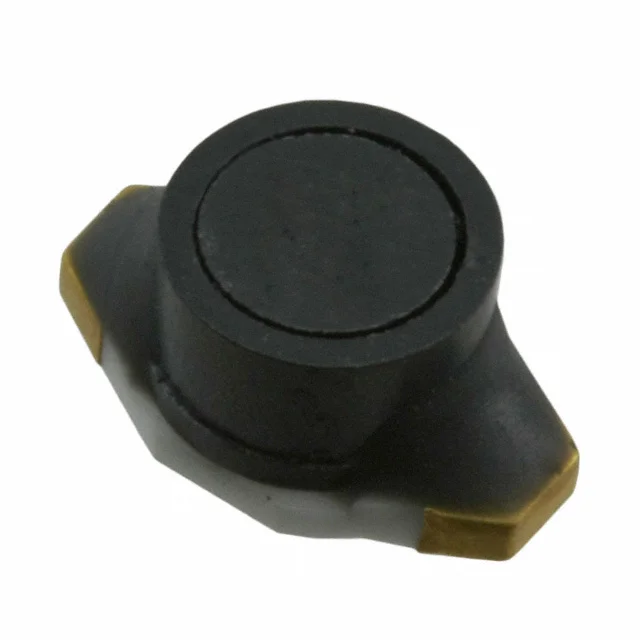

FIXED IND 330UH 200MA 1.4 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR6603-331ML.
SRR6603-331ML has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR6603-331ML is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR6603-331ML lists a DC resistance of 1.4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR6603-331ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR6603-331ML to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 1.4Ohm Max |
| Saturation Current | 70mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 200MA 1.4 OHM |
| Series | SRR6603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 40 @ 100kHz |
| Self Resonant Frequency | 5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
