Description

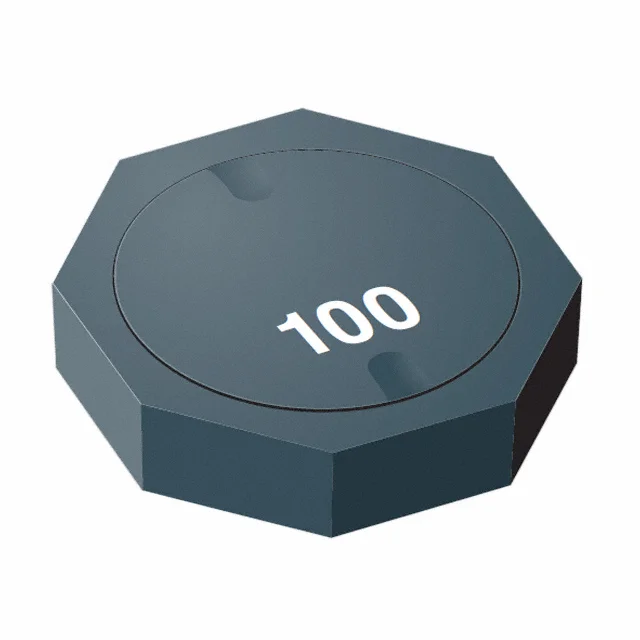

FIXED IND 100UH 850MA 470 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU1028A-101Y.
SRU1028A-101Y has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU1028A-101Y is rated for 850 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU1028A-101Y lists a DC resistance of 470mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU1028A-101Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU1028A-101Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±30% |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 470mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 850MA 470 MOHM |
| Series | SRU1028A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 796kHz |
| Self Resonant Frequency | 7MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
