Description

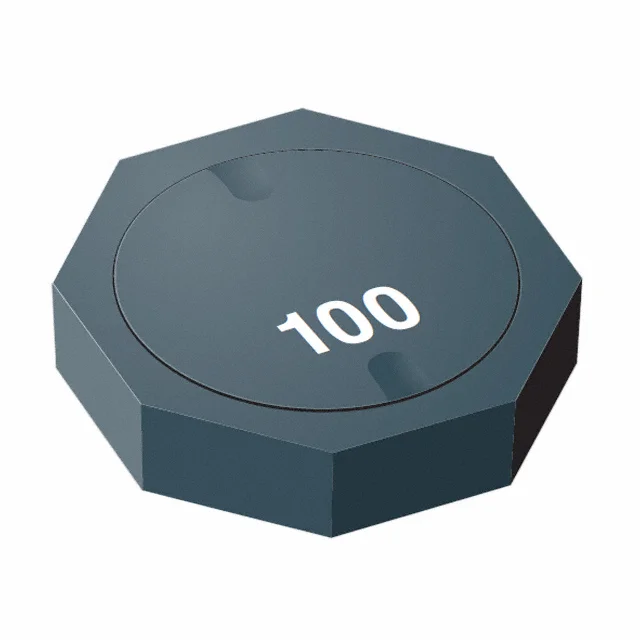

FIXED IND 150UH 650MA 680 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU1028A-151Y.
SRU1028A-151Y has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU1028A-151Y is rated for 650 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU1028A-151Y lists a DC resistance of 680mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU1028A-151Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU1028A-151Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±30% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 680mOhm Max |
| Saturation Current | 650mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 650MA 680 MOHM |
| Series | SRU1028A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 18 @ 796kHz |
| Self Resonant Frequency | 5MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
