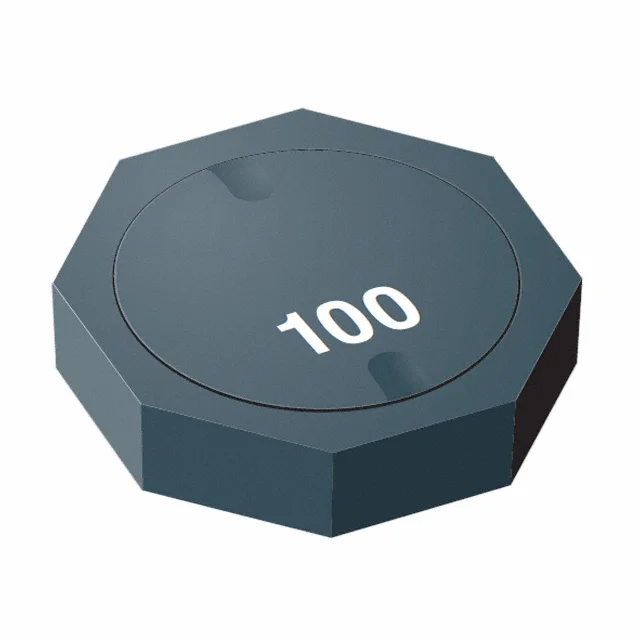

FIXED IND 8.2UH 3.3A 37 MOHM SMD
| Inductance | 8.2 µH |
| Tolerance | ±30% |
| Current Rating | 3.3 A |
| DC Resistance (DCR) | 37mOhm Max |
| saturationCurrent | 2.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 3.3A 37 MOHM SMD |
| Series | SRU1028A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 12 @ 7.96MHz |
| selfResonantFreq | 28MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.122" (3.10mm) |
| features | - |
