Description

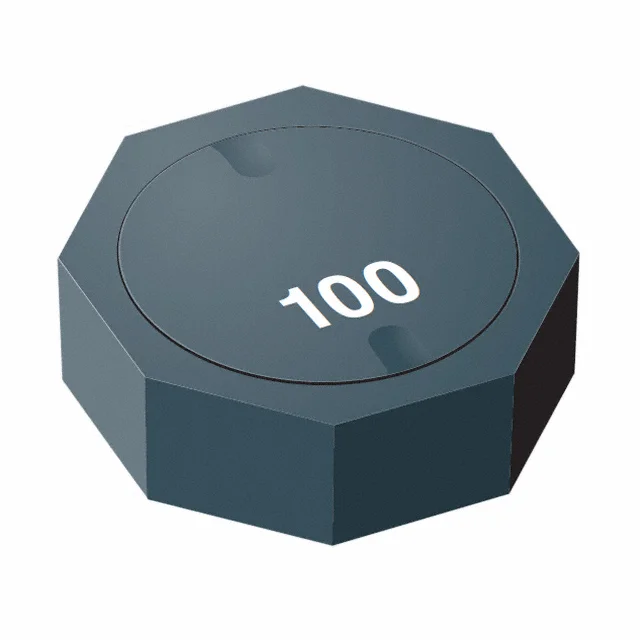

FIXED IND 5UH 4.6A 22 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU1038A-5R0Y.
SRU1038A-5R0Y has an inductance value of 5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU1038A-5R0Y is rated for 4.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU1038A-5R0Y lists a DC resistance of 22mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU1038A-5R0Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU1038A-5R0Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5 µH |
| Tolerance | ±30% |
| Current Rating | 4.6 A |
| DC Resistance (DCR) | 22mOhm Max |
| Saturation Current | 4.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5UH 4.6A 22 MOHM SMD |
| Series | SRU1038A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 12 @ 7.96MHz |
| Self Resonant Frequency | 30MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.161" (4.10mm) |
