Description

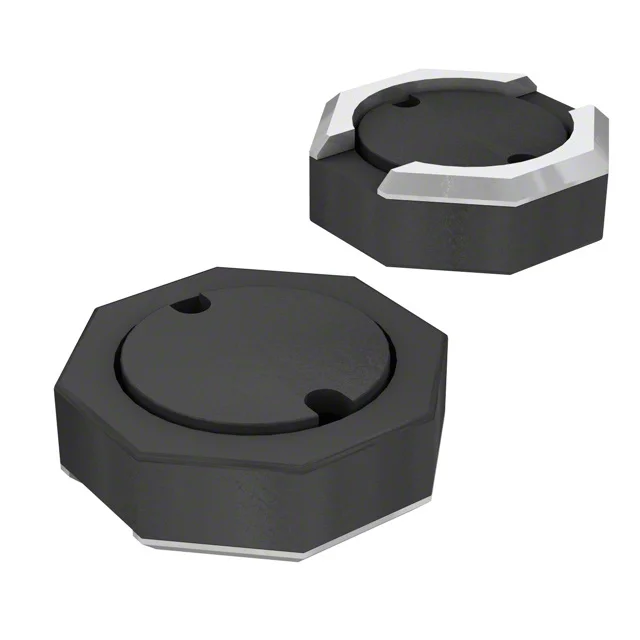

FIXED IND 10UH 400MA 1.08 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU2009-100Y.
SRU2009-100Y has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU2009-100Y is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU2009-100Y lists a DC resistance of 1.08Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU2009-100Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU2009-100Y to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.08Ohm Max |
| Saturation Current | 350mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 400MA 1.08 OHM |
| Series | SRU2009 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 10 @ 2.52MHz |
| Self Resonant Frequency | 50MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
