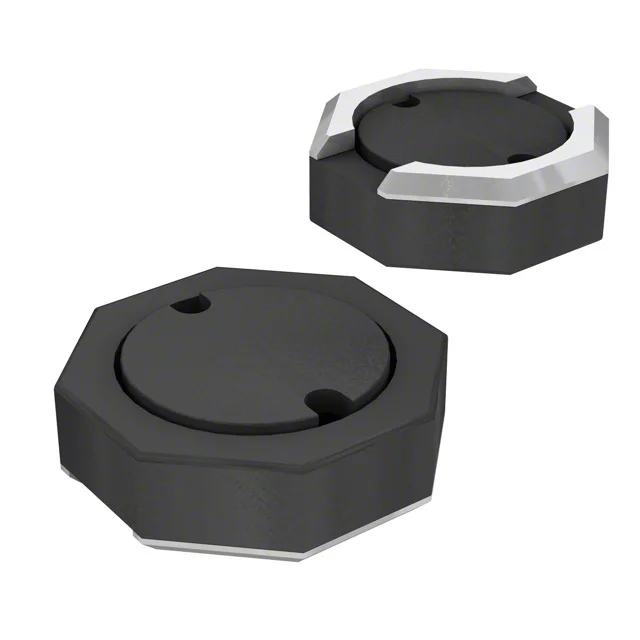

FIXED IND 2.2UH 1.1A 210 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 210mOhm Max |
| saturationCurrent | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 1.1A 210 MOHM |
| Series | SRU2009 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 7 @ 7.96MHz |
| selfResonantFreq | 120MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
