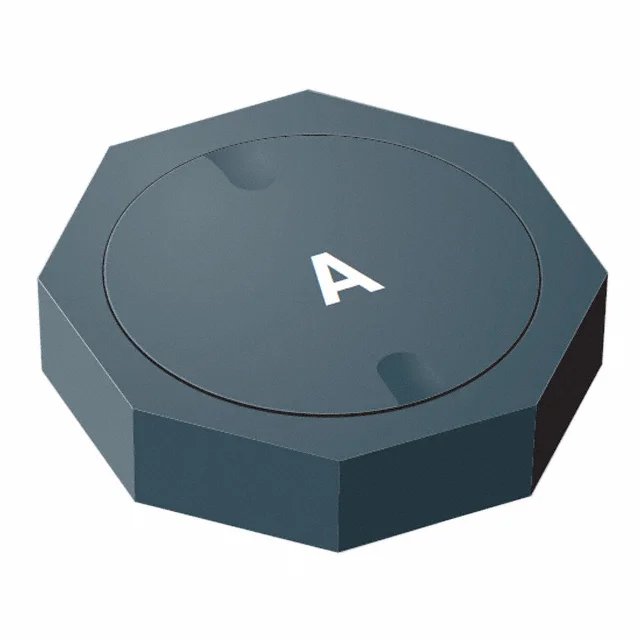

FIXED IND 3.3UH 900MA 240 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 240mOhm Max |
| saturationCurrent | 760mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3UH 900MA 240 MOHM |
| Series | SRU2011 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 6 @ 7.96MHz |
| selfResonantFreq | 80MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.047" (1.20mm) |
| features | - |
